Rp 8,450,000
Stok 1
Detail
Deskripsi

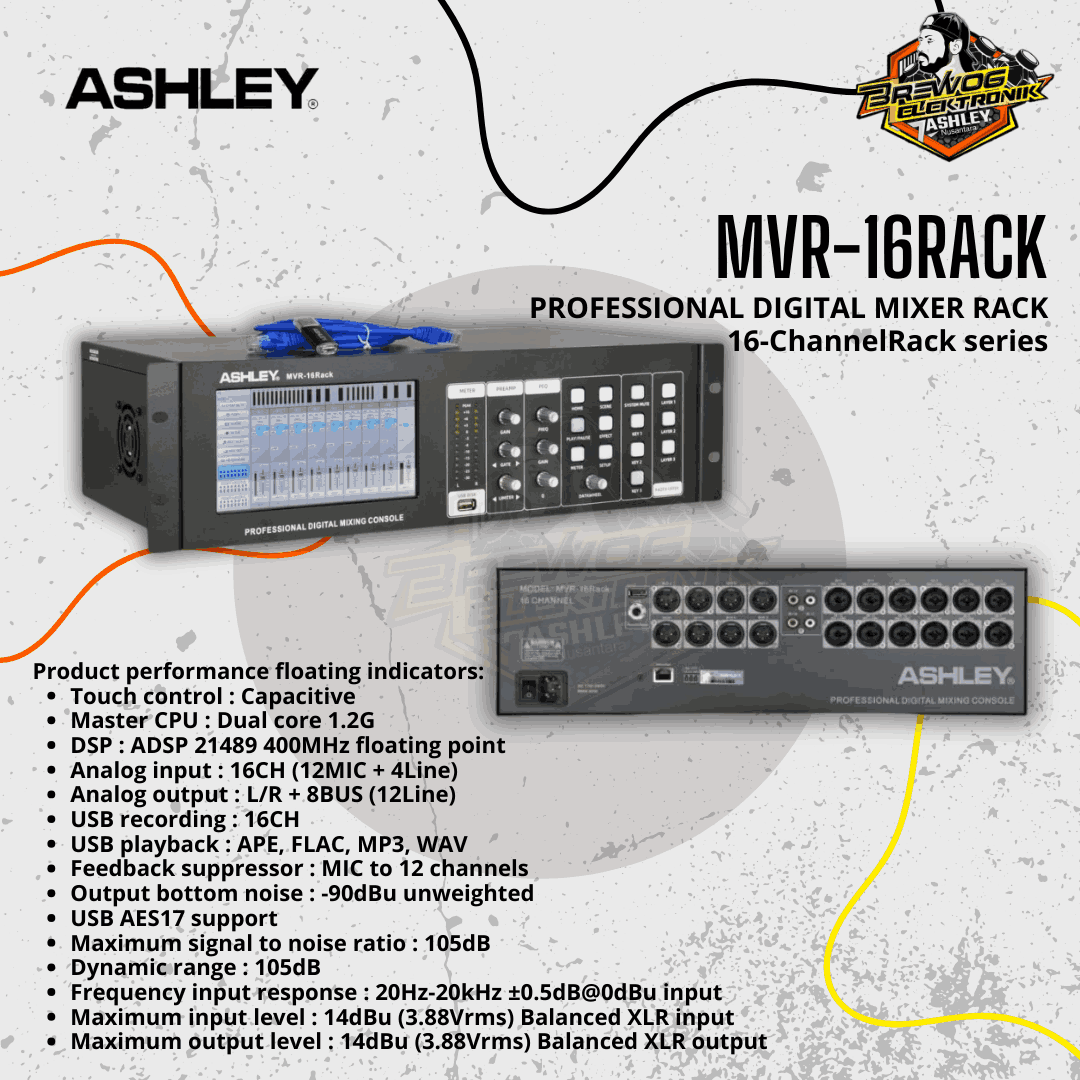

Product performance floating indicators:
Touch control : Capacitive
Master CPU : Dual core 1.2G
DSP : ADSP 21489 400MHz floating point
Analog input : 16CH (12MIC + 4Line)
Analog output : L/R + 8BUS (12Line)
USB recording : 16CH
USB playback : APE, FLAC, MP3, WAV
Feedback suppressor : MIC to 12 channels
Output bottom noise : -90dBu unweighted
USB AES17 support
Maximum signal to noise ratio : 105dB
Dynamic range : 105dB
Frequency input response : 20Hz-20kHz ±0.5dB@0dBu input
Maximum input level : 14dBu (3.88Vrms) Balanced XLR input
Maximum output level : 14dBu (3.88Vrms) Balanced XLR output7" capacitive touch screen 1024x600 resolution
9 * 100mm electric faders
Chinese/English interface can be switched at any time without restarting
Built-in USB recording and playback functions
USB player can recognize Chinese song names
Built-in feedback suppressor with eight independent channels
Integrated speaker manager
Open third-party control protocols TCP/IP and RS-232 control instructions
With 9 DCAs
iPad control : with TCP/IP protocol
Ethernet : 100M
With RS-232 protocol
USB mouse : Support
Support: Android,iPad,Computer
Effector : 6 preset effect libraries
iPad control : with realtime data syncing
Support for simultaneous control of multiple terminals
Firmware can be upgraded via Internet or USB Stick, noise gate, feedback suppressor, built-in effect module
Input channel with 4 sections parameter balancing, noise gate, feedback suppressor, high and low pass, compressor, reverse phase
The output channel has 8 sections of parameter equalization, high and low pass, compressor and reverse phase
BUS or AUX mixing can choose Pre-fader or Post-fader (PRE/POST)
Import/export data backup
100 groups of scene preset function, can be exported from USB
Support 100 groups of PEQ memory mode/computer, easy storage
Channel signal generator: sine, pink, white noise
Channel parameter copy function, same channel fast copy data
Connection mode: balanced input and output cannon
8 fader groups and 4 DCA groups
Channel name can be customizedDimensions (widthdepthheight) : 240*250*360mm
Power supply : AC 220V~240V 50/60Hz 55W
Net weight : 5.59kg
Gross weight : 7.11kg
Product size : 43*25*51.3cm
Package size : 50*38*21cm
