Rp 750,000
Stok 4
Detail
Deskripsi

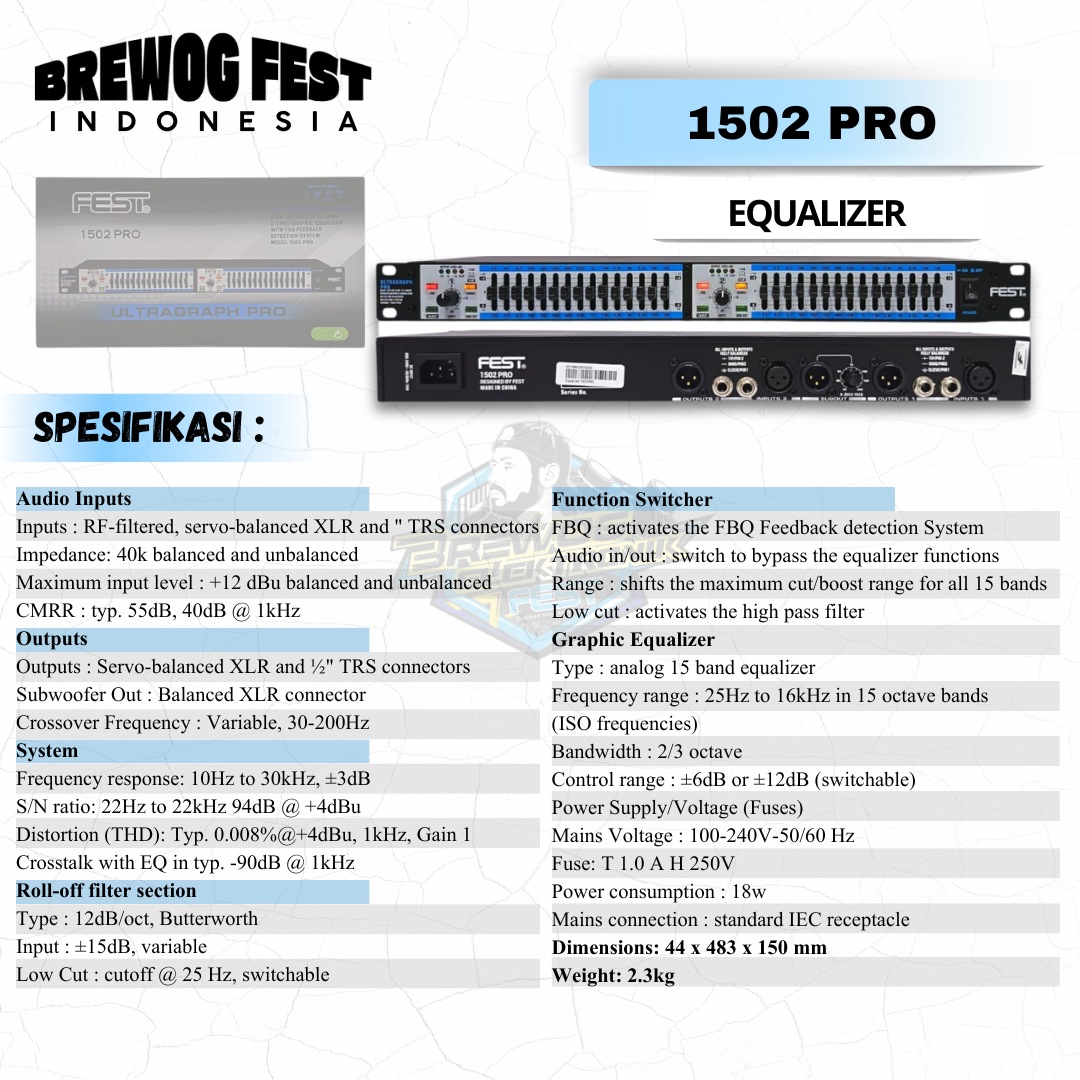

SPESIFIKASI :
Function Switcher
FBQ : activates the FBQ Feedback detection System
Audio in/out : switch to bypass the equalizer functions
Range : shifts the maximum cut/boost range for all 15 bands
Low cut : activates the high pass filter
Graphic Equalizer
Type : analog 15 band equalizer
Frequency range : 25Hz to 16kHz in 15 octave bands
(ISO frequencies)
Bandwidth : 2/3 octave
Control range : ±6dB or ±12dB (switchable)
Power Supply/Voltage (Fuses)
Mains Voltage : 100-240V-50/60 Hz
Fuse: T 1.0 A H 250V
Power consumption : 18w
Mains connection : standard IEC receptacle
Dimensions: 44 x 483 x 150 mm
Weight: 2.3kg
Audio Inputs
Inputs : RF-filtered, servo-balanced XLR and " TRS connectors
Impedance: 40k balanced and unbalanced
Maximum input level : +12 dBu balanced and unbalanced CMRR : typ. 55dB, 40dB @ 1kHz
Outputs
Outputs : Servo-balanced XLR and ½" TRS connectors Subwoofer Out : Balanced XLR connector
Crossover Frequency : Variable, 30-200Hz
System
Frequency response: 10Hz to 30kHz, ±3dB
S/N ratio: 22Hz to 22kHz 94dB @ +4dBu
Distortion (THD): Typ. 0.008%@+4dBu, 1kHz, Gain 1 Crosstalk with EQ in typ. -90dB @ 1kHz
Roll-off filter section
Type : 12dB/oct, Butterworth
Input : ±15dB, variable
Low Cut : cutoff @ 25 Hz, switchable
